Datasheet
AS1326
H i g h C u r r e n t , 0 . 8 A D C - D C St e p - U p C o n v e r t e r s
1 General Description
2 Key Features
The AS1326A/AS1326B are high-efficiency, high cur-
rent, DC-DC step-up converters specifically designed for
battery-powered wireless applications. Low quiescent
supply current (65μA), high operating frequency (1MHz),
and minimal external component requirements make
these devices perfect for small hand-held applications.
Table 1. Standard Products
Model
Input Signal Activation
!
!
!
!
!
Up to 800mA Output
Constant-Frequency (1MHz) Operation
Up to 96% Efficiency
Input Range: 0.7 to 5.0V
Fixed Output: 3.3V
AS1326A
AS1326B
Logic-Low On
Logic-High On
!
!
Adjustable Output: 2.5 to 5.0V
PWM Synchronous-Rectified Technology
Both devices use synchronous-rectified pulse-width
modulation (PWM) boost technology to generate 2.5 to
5.0V outputs from a wide range of inputs, such as 1 to 3
alkaline/NiCd/NiMH cells or a single lithium-ion (Li+)
cell. Automatic powersave operation significantly
improves efficiency at light-loads.
Continuous switching mode is available for applications
requiring constant-frequency operation at all load cur-
rents. PWM operation can also be synchronized to an
!
!
!
!
!
Logic-Controlled Shutdown: 0.1μA
Synchronizable Switching Frequency
(0.5 to 1.2MHz)
Adjustable Current Limit
Adjustable Soft-Start
10-pin TDFN (3.0mm x 3.0mm) Package
external clock to protect sensitive frequency bands in
communications equipment.
Analog soft-start and adjustable current limit permit opti-
mization of rush in current and external component size.
The AS1326A/AS1326B are available in a 10-pin TDFN
(3.0mm x 3.0mm) package.

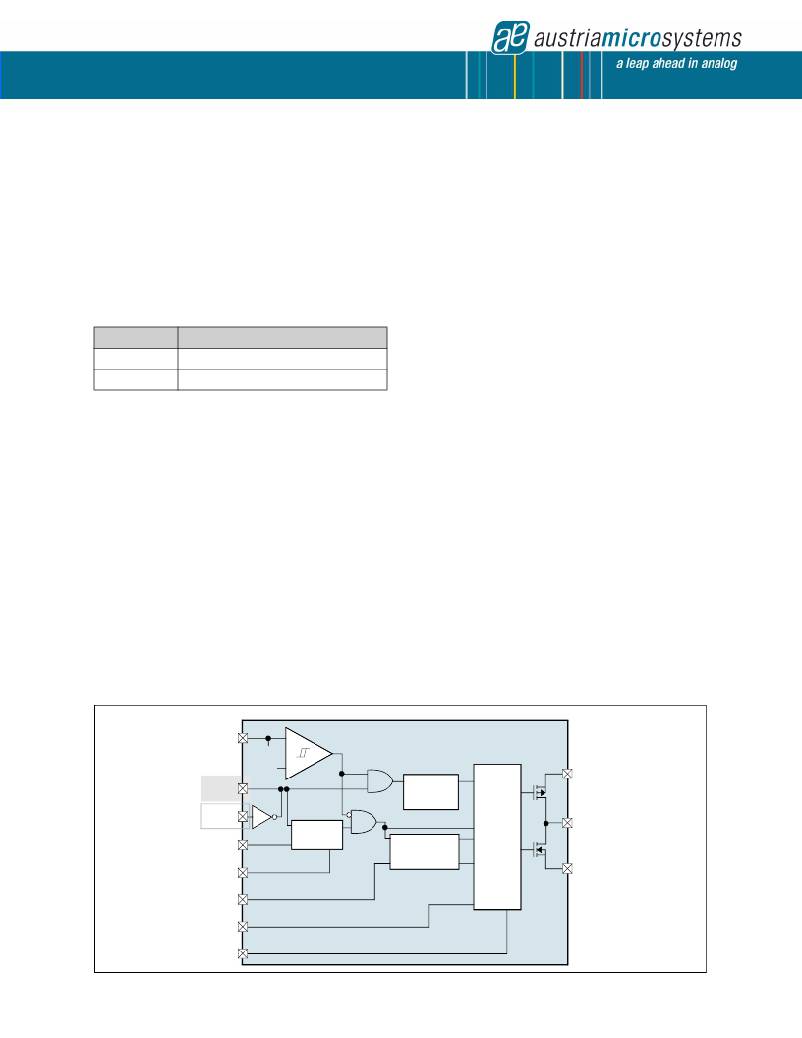

Figure 1. AS1326 - Block Diagram
3 Applications
The devices are ideal for digital cordless phones. mobile
phones, wireless handsets, hand-held instruments,
PDAs, two-way pagers, and any battery-operated equip-
ment.
5
OUT
IC Power
2.15V
+
–
Undervoltage
Lockout
AS1326
9
AS1326B
10
On Q
D
POUT
only
AS1326A
only
ON
10
ONN
2
REF
3
1.25V
On Rdy
Reference
Ref GND
Startup
Osc
En Osc
1MHz Osc
CLK/SEL Mode
Controller
En
Osc
Mode
8
LX
7
GND
6
PGND
CLK/SEL
4
FB
1
ISET
www.austriamicrosystems.com
Revision 1.05
FB
ISET
1 - 18
